NFC RFID Relay X2P

Price range: 69,90 € through 99,90 €

Includes 19% Tax
Free Shipping
Delivery Time: ca. 2-3 Werktage

NFC RFID relay as access control and usage restriction of devices

Suitable for NFC Implant X1, X2, X3 Series

To restrict access, you can use our NFC RFID relay to do just that. Assign transponders to create easy authentication.
Clear
View Detail

Description

RFID NFC Relay X2P Description

Switch all electronic devices that you want to equip with access control or access control. You can use this relay to lock, unlock or restrict the use of electrical devices, using NFC transponder.

If you want to operate a wallbox, our customers choose this device in combination with the NFC wall reader X2A2.

null

Wallbox

Equip your home wallbox with an RFID access control system

Access control

With the built-in relay, you can control electronic locking systems

Vehicle electronics

Start the ignition of your motorcycle or unlock your e-scooter

Machines and devices

Unlock devices or industrial machines whose access is to be restricted

Possible applications of NFC RFID relays

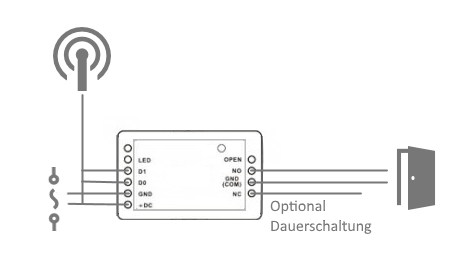

You can directly control and connect the relay with all devices up to 2A. The relay also supports a setting option that allows you to freely select how long you want the relay to switch (1-99sec / continuous ON/OFF) This allows you a variety of uses.

Our NFC RFID relay switches your access control system or other terminal devices that you want to equip with an authorization. The device can be easily configured and adjusted to the end device using the supplied remote control or programming NFC card. The relay is of course NFC implant and RFID implant compatible and supports a wide range of NFC antennas that also use the 26 and 34 bit interface standard.

The NFC RFID relay can be used very individually and can be installed easily due to its small dimensions of 65Ɨ40 mm. In addition, the relay supports an external power supply so that the connected device can be powered by the relay (12V DC).

RFID NFC relay functions with App and Wifi (Optional)

User management

You can use the Tuya or Smartlife app to manage users and add and delete their access cards, NFC implants, etc.

Configuration

The app can also be used to fully configure the relay, such as relay switching time, sound and auto-lock function.

Cloud controlling

You can also open and close the relay remotely. All that is required is that the relay is connected to your Wifi.

Log / History

The app provides you with a list of users who have opened the lock, when and with which medium.

What is an NFC RFID Relay?

A relay switches an electric circuit after an electrical impulse. to start a car engine. Simplified, you can say that a relay is a kind of light switch, which you can equip with an access authorization.

In this case, several users(NFC transponders) can be taught to the relay and deleted again. If the controller is now operated using the NFC antenna with the serial number of a transponder, the NFC RFID relay checks whether this is stored and switches the power. This can then result in a garage door or a door opening or an industrial machine being operated by closing the relay.

Compatible antennas

  • Antena NFC RFID X2A DOT
    Select options
    RFID antennas

    Antena NFC RFID X2A DOT

    Price range: 24,90Ā ā‚¬ through 29,90Ā ā‚¬

    Includes 19% Tax
    Free Shipping
    Delivery Time: ca. 2-3 Werktage

    Antena RFID atornillable con rosca para implante NFC X2 o X3 e implante RFID X1. Resistente al agua y fĆ”cil de implementar con un relĆ© domĆ³tico, de control de acceso o NFC existente.

  • Antena NFC X2A
    Select options
    RFID antennas

    Antena NFC X2A

    29,90Ā ā‚¬

    Includes 19% Tax
    Free Shipping
    Delivery Time: sofort lieferbar

    Antena NFC para reequipar su sistema de control de acceso

    Con esta antena NFC, puede hacer que su sistema de control de acceso sea compatible con los ciborgs. La antena es compatible con casi todas las soluciones de acceso existentes.

  • Lector mural NFC RFID X2A2
    Add to cart
    RFID antennas

    Lector mural NFC RFID X2A2

    59,90Ā ā‚¬

    Includes 19% Tax
    Free Shipping
    Delivery Time: ca. 3-4 Werktage

    Antena NFC para reequipar su sistema de control de acceso

    Con esta antena NFC, puede hacer que su sistema de control de acceso sea compatible con los ciborgs. La antena es compatible con casi todas las soluciones de acceso existentes.

  • NFC RFID Antena de doble frecuencia X2A lite
    Select options
    RFID antennas

    NFC RFID Antena de doble frecuencia X2A lite

    14,90Ā ā‚¬

    Includes 19% Tax
    Free Shipping
    Delivery Time: sofort lieferbar

    Antena RFID NFC de doble frecuencia para leer distintos tipos de chip

    Con esta antena RFID NFC, puede hacer que su control de acceso X1 X2 X3 y X4 sea compatible con implantes. La antena es compatible con casi todas las etiquetas NFC de la gama LF a la HF.

Scope of delivery

Relay box X2R

12V Relay X2R

Details: Relay box with ABS protective cover and connection elements. Color: Black, Weight: 35g, Size: 65x40x20mm (Without screw wing)

Power supply unit (optional)

Euro power supply to operate the relay by means of regular socket.

Details: 1 piece power supply, voltage: 12V, current: 2A, power: 24W

Guide

Short setup guide with key combinations for configuration, as well as connection examples

Details: Printing from Germany, 4pages, b/w

Installation tool

Installation tool and mounting screws with dowels

Details: 1 pcs slotted screwdriver, 2 pcs fixing screws, 2 pcs dowels

NFC tags

The relay also already comes with three passive transponder tags that can be taught to the relay.

Details: 3 pieces passive NFC tags, MIFARE Classic compatible, color: blue

Electronic components

A jumper cable is also supplied and a diode in case the relay is not to be switched potential-free.

Details: 1 piece diode, 1 piece jumper cable 15cm
