Smarthome and NFC Implant Compatible NFC Access Control

We also offer our customers compatible locking systems and access control systems independently of our NFC implants. These can be integrated and controlled in existing smarthome systems. Our lock cylinders can be operated by NFC implant as well as by classic NFC transponder in the form of key fobs and cards. In addition, we carry relays for existing access systems such as turnstiles, buzzers or vehicle electronics, which allow electronic devices to be locked and unlocked using NFC transponders.

  • NFC lock cylinder X3Z 3in1

    199,90 249,90

    Includes 19% Tax
    Free Shipping

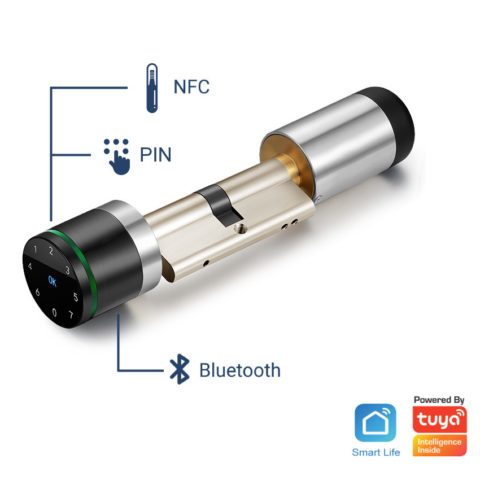

    NFC locking cylinder in Euro profile as MIFARE® version with Bluetooth and Touch PIN

    Suitable for NFC Implant X2 / X2.1 and X3 / X3Elite

    Open doors with an NFC tag or NFC implant and without a keychain. The X3Z has user management and smarthome integration with the Tuya or Smart Life app.

X3Z

The X3Z locking cylinder is a true all-rounder. The various opening options and the extensive functionality of the app enable the locking cylinder to cover a wide range of applications. It has a sophisticated user administration that determines which users are allowed to open when and with which medium. An opening history and opening notification provide a real-time overview of the locking cylinder. The configuration up to the opening of the locking cylinder can be done location-independent by means of an optional Wifi connection, so that you always have full control over your locking system. Alternatively, control is also possible via Bluetooth. Users can use multiple media to open the locking cylinder. This includes PIN, which can also be assigned temporarily, Bluetooth, NFC, and optionally via fingerprint.

Compatibility

Android7 +
iOS10 +

Chipset types

NTAG 215, 216
MIFARE Classic®
MIFARE DESFire®
MIFARE Ultralight®

Memory

100 users
200 media
30 BT users

Media

Bluetooth
NFC
PIN
Fingerprint
Wifi

Insert

Office
Apartment door
Rental rooms
House entrance door
  • NFC RFID Relay X2P

    69,90 99,90

    Includes 19% Tax
    Free Shipping

    NFC RFID relay as access control and usage restriction of devices

    Suitable for NFC Implant X1, X2, X3 Series

    To restrict access, you can use our NFC RFID relay to do just that. Assign transponders to create easy authentication.

X2P

Our X2P relay is ideal for controlling and enabling devices. The relay can be switched potential and potential-free, so that current or generally circuits can be provided with an access authorization. The relay has a Wiegand input so that NFC RFID antennas and readers can be connected. The serial numbers of the transponders can be read and checked in the controller whether the relay should be switched, i.e. the circuit closed, or access or entry denied. This enables wide applications in the field of front doors, smart home, automotive electronics and machinery. Network integration, in combination with the Tuya app, can manage users and their transponders, as well as provide restriction and remote maintenance of the relay.

Compatibility

Android7 +
iOS10 +

Relay

12V potential
Potential-free
12V Output

Memory

100 users
50 media

Interface

Bluetooth
NFC
Wiegand

Insert

Summer
Wallbox
Vehicle Electronics
Machines

Not found what you are looking for?

Write us your requirements via mail to support@iamrobot.de ! We have many more models and modifications.
